Stovax Studio Air inset wood burning fires

Stovax Studio Air inset wood burning fires are available in two sizes, and each can be selected as a frameless Edge, or enhanced with a choice of contemporary framing options. Across all versions, the Studio Air can be selected with one of three decorative coloured trims, in Black, Storm Grey or White, and can be selected with an optional dedicated external air kit.

Body material	Steel
Rated Output	Air One -5 kW. Aire Two - 8.2kW
Energy performance certificate? Energy Performance certificate Close c5blu	A+
SIA Ecodesign Ready? What is SIA? Close The Stove Industry Alliance exists to promote and advise consumers, manufacturers and public services on the benefits of wood-burning stoves and biomass appliances. The SIA is an alliance of manufacturers, distributors, advisory/test house bodies and other interested parties.	Yes
Efficiency	78%
Airwash? What is airwash? Close Airwash is a design feature that uses a specially placed vent or vents to draw in air from the outside to wash over the inside of the glass. This helps to keep the glass clean, allowing you to enjoy the glow and flames to the full.	Yes
Cleanburn? What is cleanburn? Close Cleanburn is a system by which hot air is introduced into the firebox just above the normal height of the fire. This allows the combustion of unburned hydrocarbons in the smoke stream. This, in turn, provides not only a ‘cleaner burn’ (i.e. less soot particles going up the chimney/flue and into the atmosphere), but also allows you to enjoy even more flames.	Yes
Approved for smoke controlled areas? Smoke control areas Close A smoke control area is a legally defined area where only approved solid fuels or exempted appliances (eg wood burning stoves) can be used within buildings. Your local authority will be able to advise you if you are not sure.	Yes
Room vent required? Do I need an air vent? Close The air vent aperture required increases in size depending on the KW output of the stove (this being very approx. equivalent to a 50p piece for each KW – so a 5kw stove requires an area equivalent to 5x50p pieces). The exact figure is 550 square millimetres of vent hole per kw of stove. In new build properties, or properties likely to be as airtight as such a property, there MUST be a PERMANENTLY OPEN air vent within the room (venting to outside). It should not be possible to close this vent and it should be sited in a place where a householder is not tempted to cover it up.	Air One - No. Aire Two - Yes
Flue connection	150mm
Direct air supply	Optional? Do I need an air vent? Close The air vent aperture required increases in size depending on the KW output of the stove (this being very approx. equivalent to a 50p piece for each KW – so a 5kw stove requires an area equivalent to 5x50p pieces). The exact figure is 550 square millimetres of vent hole per kw of stove. In new build properties, or properties likely to be as airtight as such a property, there MUST be a PERMANENTLY OPEN air vent within the room (venting to outside). It should not be possible to close this vent and it should be sited in a place where a householder is not tempted to cover it up.
Minimum Hearth Thickness	125mm
Boiler option	No

Stovax Studio Air inset wood burning fires are available in two sizes, and each can be selected as a frameless Edge, or enhanced with a choice of contemporary framing options.

Across all versions, the Studio Air can be selected with one of three decorative coloured trims, in Black, Storm Grey or White, and can be selected with an optional dedicated external air kit.

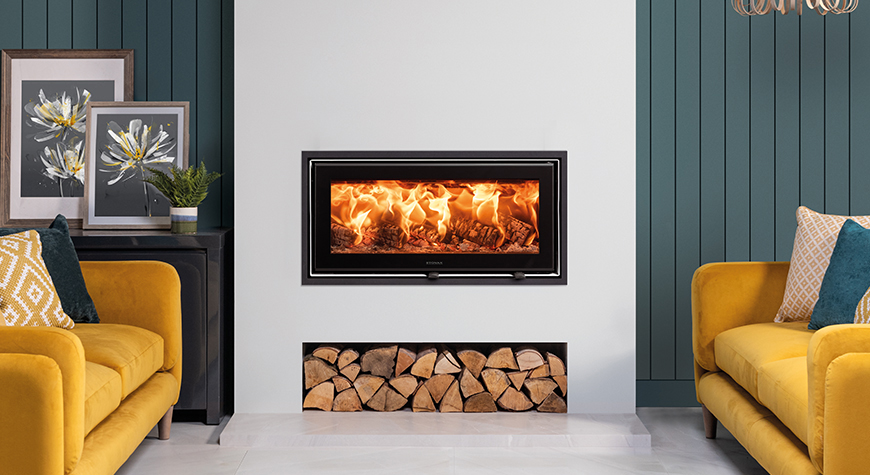

For a classic hole-in-the-wall look, Stovax Studio Air inset wood burning fires come with an Edge Kit as standard for a stylish and minimalist no-frame finish. This frameless aesthetic offers contemporary perfection and creates a truly breathtaking centrepiece.

You can further enhance the Edge with the choice of three decorative coloured trims available, including Black, Storm Grey and White.

Making for easy finishing around your Stovax Studio Air wood burning fire, the Edge+ frame provides a similar minimalist finish to the Edge, but with a narrow trim that overlays the surrounding wall surface. This ensures your wood burning fire still retains that sleek hole-in-the-wall look, but with the clean lines of a neat steel border that hides plastering imperfections and offers a perfectly crisp finish around the installation opening.

Finished in a timeless Metallic Black that suits almost all interiors, the Stovax Studio Air Profil frame offers both style and versatility. Aside from the classic four-sided frame, the Profil can be selected as a three-sided version allowing you to hearth mount your Studio Air wood burning fire for an alternative look. The Studio Air Profil can also be selected with Black, Storm Grey or White decorative trims.

With clean geometric lines and a reflective black glass finish, which complements the fire’s decorative trim options, the Stovax Studio Air Icon XS frame makes a bold statement and gives the impression of an even larger format wood burning fire, whichever size you choose.

Fire Size	Nominal Heat Output & Range	Max log lengths	Frame dimensions mm (w x h) Edge	Energy Efficiency Class
Studio Air 1	5.0kW (1.7-7kW)	300mm (12")	778 x 450mm*	A
Studio Air 2	8.2kW (2.8-11kW)	400mm (16")	978 x 476mm*	A

PM1711 STUDIO AIR 1 CASSETTE PM1859 STUDIO AIR 2 CASSETTE

1,200

Stovax Studio Air Inset Range
