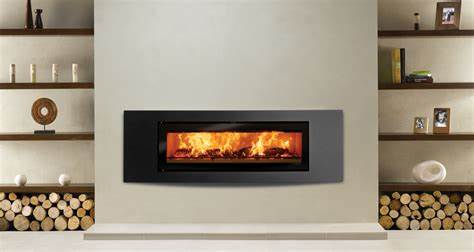

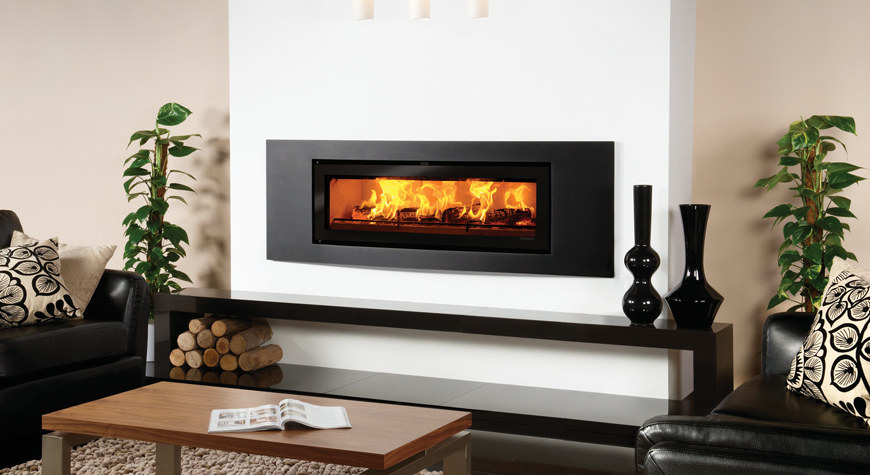

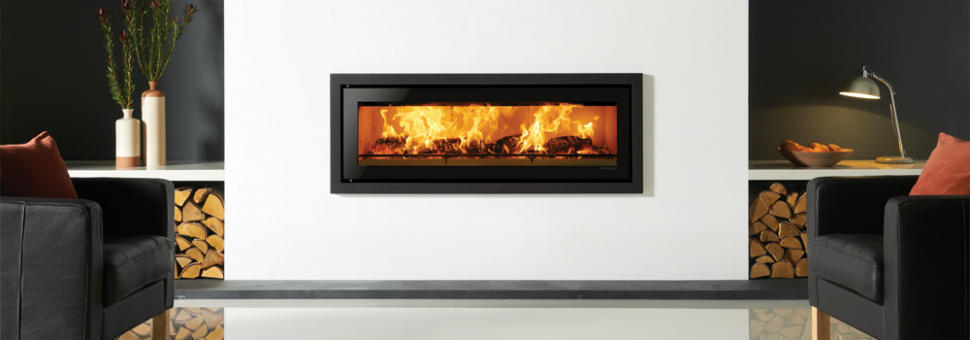

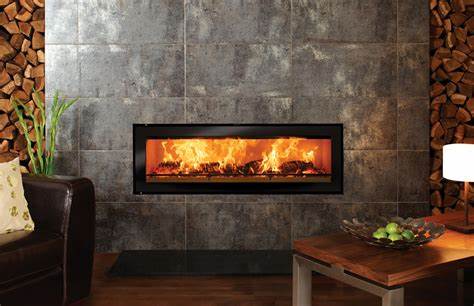

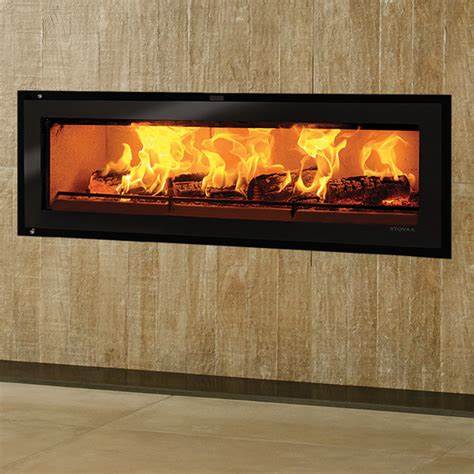

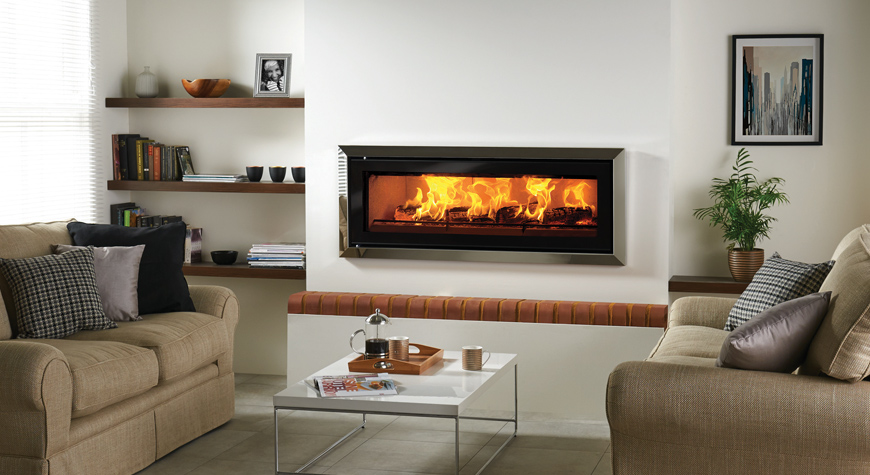

Stovax Riva Studio 3 Inset

Stovax Studio freestanding

The largest in Stovax’s Studio range is the striking Studio 3 Freestanding wood burning stove. This highly efficient and visually impressive wood burning stove has the same 11kW of heat output and stunning widescreen views of the flames as its inset fire equivalent but offers a very different look.

Designed to be sited on to the optional 180 Bench, or hearth mounted to achieve the distinctive stove look, the Studio 3 Freestanding will create maximum visual impact in rooms of larger proportions. It also has the ability to be fitted with an optional rear heat shield to reduce the distance to combustible materials behind the appliance and extend the styling possibilities further still.















Body material Steel
Rated Output 11 kW
Energy performance certificate ? A+
SIA Ecodesign Ready ? Yes
Efficiency 80%
Airwash ? Yes
Cleanburn ? Yes
Approved for smoke controlled areas ? Yes
Room vent required ? Yes
Flue connection 150mm
Maximum log length 600mm
Multi-fuel grate No
Direct air supply
Yes ?
Minimum Hearth Thickness 125mm
Boiler option No
Weight 185kg

  1. TCL (Technical Combustion Lining) High density thermal liner system
  2. Heated air jets from cleanburn ports burn hydrocarbons in smoke
  3. Airwash air flow
  4. Primary control
  5. Removable handle (Studio 500, 1, 2 & 3) and door opening catch (Studio 500, 1 & 2)
  6. Convected and radiant heat
  7. Convected heat ducting system outlet
  8. Easy fit flue connection
  9. Removable baffles
  10. External air facility (insets only)
  11. Optional fan kit (insets only)
  12. Optional 10˚ flue outlet (insets only – not illustrated)
  13. Optional Smoke Control Kit (Studio 500†, 1 & 2 only – not illustrated)
