Stovax Riva Studio 3 Freestanding


click the images to enlarge

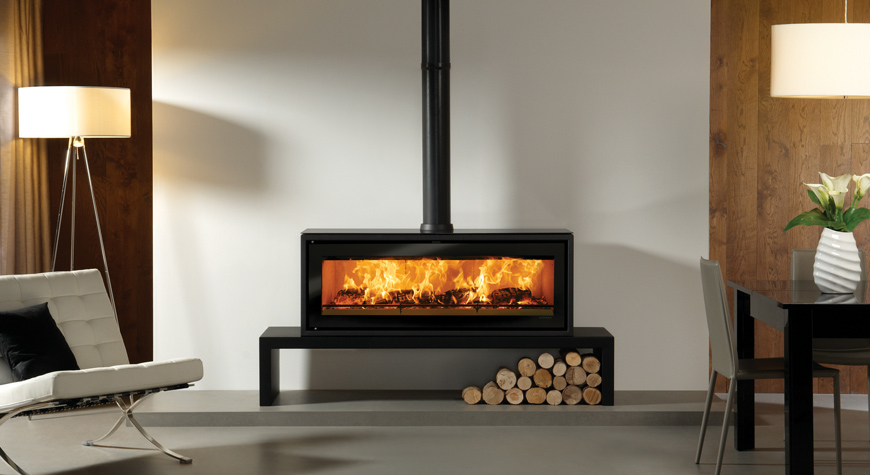

The largest in Stovax’s Studio range is the striking Studio 3 Freestanding wood burning stove. This highly efficient and visually impressive wood burning stove has the same 11kW of heat output and stunning widescreen views of the flames as its inset fire equivalent but offers a very different look.

Designed to be sited on to the optional 180 Bench, or hearth mounted to achieve the distinctive stove look, the Studio 3 Freestanding will create maximum visual impact in rooms of larger proportions. It also has the ability to be fitted with an optional rear heat shield to reduce the distance to combustible materials behind the appliance and extend the styling possibilities further still.







Body materialSteel
Rated output10kw
SIA Ecodesign
Yes - more information
Smoke control area approvedYes
Cleanburn / Airwash
Yes
Efficiency80%
Room vent required
Yes
External air supply option
Yes
Flue connection150mm - top or rear interchangable
Maximum log length850mm
Fuel type
Wood
Grate / Ashpan
No
Suitable for 12mm HearthNo
Weight170kg



  1. TCL (Technical Combustion Lining) High density thermal liner system
  2. Heated air jets from cleanburn ports burn hydrocarbons in smoke
  3. Airwash air flow
  4. Primary control
  5. Removable handle (Studio 500, 1, 2 & 3) and door opening catch (Studio 500, 1 & 2)
  6. Convected and radiant heat
  7. Convected heat ducting system outlet
  8. Easy fit flue connection
  9. Removable baffles
  10. External air facility (insets only)
  11. Optional fan kit (insets only)
  12. Optional 10˚ flue outlet (insets only – not illustrated)
  13. Optional Smoke Control Kit (Studio 500†, 1 & 2 only – not illustrated)
