Stovax Studio Duplex Double Sided Inset

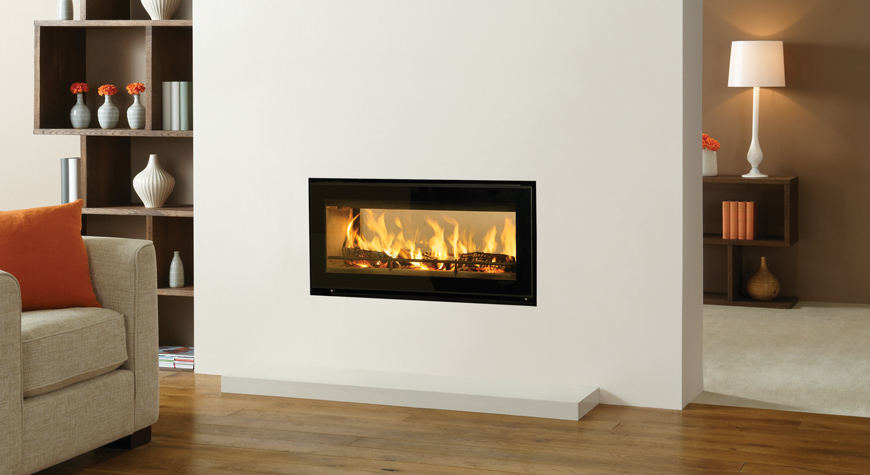

The Studio Duplex is the first double-sided inset wood burning fire to be introduced into the Studio range.

Offering the ultimate in versatility, each side of the Duplex can be styled with a completely different frame option from the existing Studio range. From the clean finish of the contemporary Edge to the opulent stone Pienza, or the sparkling Glass to the bold curved Verve, you can achieve a distinctive look in each room, whilst enjoying the rolling flames from the very same fire.

The Studio Duplex Bauhaus, Steel XS, Steel, Verve and Profil frames each benefit from additional colour finishes: Metallic Red, Metallic Bronze and Ivory.
In terms of performance, the Duplex inset wood burning fire is matched only by its single sided equivalent, offering a highly efficient firebox with an impressive heat output of up to 9kW. The Duplex can additionally benefit from Stovax’s new optional Sealed Air System that will eliminate almost any draft from within the room.

Whether as a centrepiece to an open plan living space, or as a connecting feature between two separate rooms, the Studio Duplex offers an undeniably contemporary aesthetic and the ultimate appeal in dual space heating.









Body material Steel
Rated Output 9 kW
Energy performance certificate ? A+
SIA Ecodesign Ready ? No
Efficiency 75%
Airwash ? Yes
Cleanburn ? Yes
Approved for smoke controlled areas ? Yes
Room vent required ? Yes
Flue connection 150mm
Maximum log length 500mm
Multi-fuel grate No
Direct air supply
No ?
Minimum Hearth Thickness 125mm
Boiler option No
Weight 185kg





Edge kit 940 454 34
Edge Cool Wall kit 940 454 59
Edge + 983 497 1
Profil (Wide) 1089 592 30
Bauhaus (Wide) 1090 594 36
Firenza , Pienza & Sienna 1720 621 18
Steel 1439 622 3
Steel XS 1111 622 31
Ceramica Wave 1880 690 19
Verve 1440 622 59
Sorrento 1536 703 300
Glass 1445 628 8
