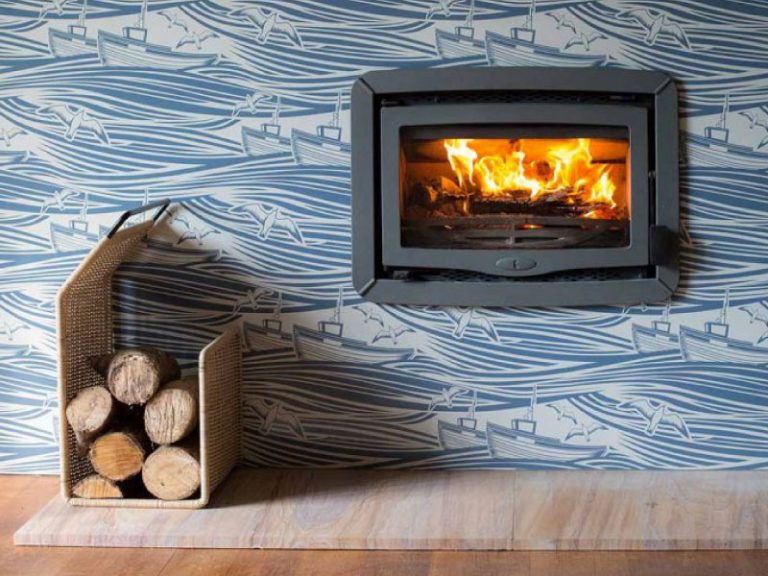

The BAY is the definitive new insert wood burning stove range from Charnwood. The stove features a large landscape window framed with a gently curved surround. Built from the best combination of cast iron,plate steel and ceramic glass, the BAY is brick lined and is designed for easy installation. Delivering 5kW of heat to the room the stove features new burn technology and is incredibly simple to operate.
Available in 3 options: The BAY 5, BAY 5GT and the Bay 5VL.
Both models employ the latest smoke reducing technology and are DEFRA exempted - allowing wood to be burnt in smoke control


  • Body material - Steel (cast iron door)
  • Rated Output - 5 kW
  • Efficiency - 76%
  • Airwash - Yes
  • Cleanburn - Yes
  • Approved for smoke controlled areas - Yes (factory fitted)
  • Room vent required - No
  • Flue connection - 125mm
  • Maximum log length - 480mm
  • Woodburning (no grate) - No
  • Multifuel - Yes
  • External riddling - Yes
  • Direct air supply - No
  • Minimum Hearth Thickness - 125mm
  • Boiler option - No
  • Painted colour options - Yes
  • Weight - 83kg – 89kg
